New » Can-Am » Outlander MAX 500 EFI
Model Quick Search

$8,349.00

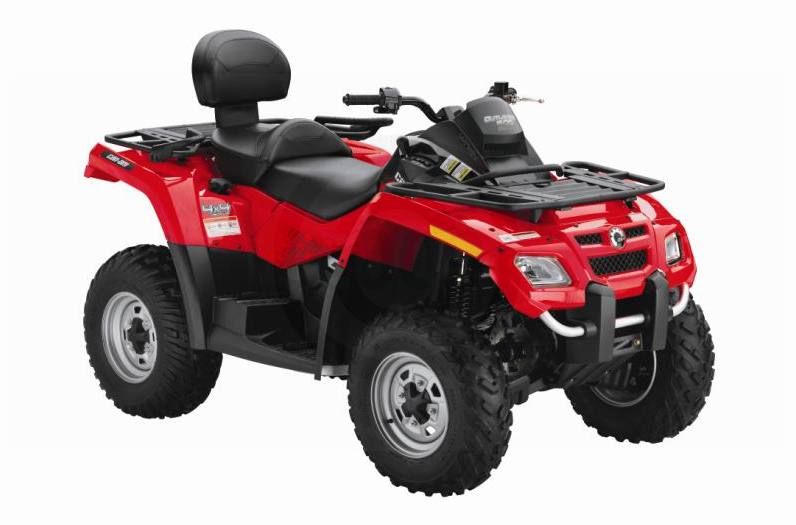

2009 Can-Am Outlander MAX 500 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • In Stock
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Rotax V-Twin 499.6cc EFI engine
  • TTI Independent rear suspension
  • Visco-Lok 4x4 front differential
  • MacPherson front suspension
  • CVT Transmission
  • Multi-function gauge
  • Center skid plate
  • MAX Chassis
  • Convertible rack/seat system
Standard package Features
  • Rotax 500 EFI V-Twin engine
  • TTI independent rear suspension
  • Lightweight double A-arm front suspension
  • Visco-Lok auto-locking front differential
  • Continuous Variable Transmission [CVT]
  • Center Skid Plate
  • Multi-function full digital gauge
  • D.E.S.S. electronic anti-theft system
  • Steel Racks with 300-pound [136 kg] capacity
  • 26-inch radial tires with steel wheels
  • Ergonomic passenger backrest
  • Convertible rack/seat system with totable storage box
  • Raised floorboards
  • Multi-position passenger handgrips
  • Driver lumbar support
Engine
  • Type: 499.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
  • Bore & Stroke: 82 x 47 mm
  • Net Power: 42 Nm @ 6,000 RPM
  • EFI System / Carburetor: 46 mm Throttle Body, 2 Siemens VDO injectors
  • Starting System: Electric
  • Transmission: CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
  • Drive Train: Selectable 2w/4w shaft driven with Visco-lok front differential
Chassis
  • Frame: SST
  • Front Suspension Type: McPherson
  • Travel: 7 in (178 mm)
  • Rear Suspension Type: TTI independent
  • Travel: 9 in (229 mm)
  • Front Brake: 2 inboard hydraulic discs
  • Rear Brake: 1 inboard hydraulic disc
  • Tires/Front: 25 x 8 x 12 in (660.4 x 203 x 305 mm)
  • Tires/Rear: 25 x 10 x 12 in. (660 x 254 x 305 mm)
  • Wheels: Steel
Dimensions
  • L x W x H (in): 94 x 46 x 45 in
  • L x W x H (mm): 2.184 x 1.168 x 1.143 mm
  • Wheelbase: 59 in (1.499 mm)
  • Seat Height: 34.5 in (877 mm)
  • Ground Clearance: 11 in (279 mm)
  • Dry Weight: 688 lbs (312 kg)
  • Towing Capacity: 1300 lbs (590 kg)
  • Rack Capacity: 100 lbs (45 kg); 200 lbs (90 kg)
  • Storage: Rear storage 5.3 US gal (20L) CRS (Convertible Rack System)
  • Fuel Capacity: 5.3 US gal. (20 L)
Features
  • Instrumentation: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip meter, diagnostic center, gear position, hour meter, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, auto shut off after 15 minutes
  • Anti-Theft: D.E.S.S. (Digital Encoded Security System)
  • Electrical: Prewired for winch
  • Lighting: 2 fender mounted headlamps (35W) with tail light / brake light
  • DC Outlet: Lighter type in console, standard connector in the back (15A)
  • Color(s) available: Viper Red
Warranty
  • Basic: 6 months limited factory warranty
  • Extended: B.E.S.T. available from 12 to 36 months
Other features
  • Electronic anti-theft system (D.E.S.S.)
  • Steel racks with 300-pound (136 kg) capacity
  • 25-inch radial tires with painted steel wheels
  • SST frame

Other Can-Am  Models In Stock

Model
Type
Year
Color
Price
2010 Can-Am DS 250 ATV 2010 YELLOW $3,699.00
2008 Can-Am DS 450 ATV 2008 YELLOW $4,799.00
2010 Can-Am DS 70 ATV 2010 YELLOW $2,119.00
2010 Can-Am DS 90 ATV 2010 YELLOW $2,499.00
2009 Can-Am outlander ATV 2009 $8,475.35
2009 Can-Am OUTLANDER 400XT ATV 2009 BLACK $7,749.00
2009 Can-Am OUTLANDER MAX 400XT ATV 2009 RED $8,599.00
2009 Can-Am Renegade 800R X ATV 2009 BLACK $10,499.00

Specifications

Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 62 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Chassis
Front Suspension McPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (660.4 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10 x 12 in. (660 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 688 lbs (312 kg)
Front Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase 59 in. (1.499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Viper Red
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months

Compare Models

 Print








Year 2009
Manufacturer Can-Am
Model Outlander MAX 500 EFI
Style Multi-Rider
MSRP* $8,349.00
Chassis
Front Suspension McPherson
Front Travel 7 in. (178 mm)
Front Brake Type 2 inboard hydraulic discs
Front Tires 25 x 8 x 12 in. (660.4 x 203 x 305 mm)
Rear Suspension TTI independent
Rear Travel 9 in. (229 mm)
Rear Brake Type 1 inboard hydraulic disc
Rear Tires 25 x 10 x 12 in. (660 x 254 x 305 mm)
Frame SST
Dimensions/Capacities
Dry Weight 688 lbs (312 kg)
Front Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Rear Rack Capacity 100 lbs (45 kg); 200 lbs (90 kg)
Towing Capacity 1300 lbs (590 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11 in. (279 mm)
Machine Dimensions (LxWxH) 94 x 46 x 45 in. (2.184 x 1.168 x 1.143 mm)
Wheelbase 59 in. (1.499 mm)
Drive Train
Drive Train Selectable 2w/4w shaft driven with Visco-lok front differential
Final Drive
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Engine
Engine Type V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Displacement 499.6 cc
Bore x Stroke 82 x 62 mm
Cylinders Twin
Engine Cooling Liquid
Fuel System 46 mm Throttle Body, 2 Siemens VDO injectors
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting 2 fender mounted headlamps (35W) with tail light / brake light
Colors Viper Red
Warranty Basic: 6 months limited factory warranty; Extended: B.E.S.T. available from 12 to 36 months
